%@AUTEUR: David Nivaud
verbatimtex
%&latex
\documentclass[12pt]{article}
\def\vect#1{\overrightarrow{#1}}
\def\Vect#1{\overrightarrow{\strut #1}}
\everymath{\displaystyle}
\begin{document}
etex


beginfig(1);
%Representants d'un vecteur
numeric u;
pair t;
u = 1cm;
t=(1u,2u);
transform T;
T = identity shifted t;
z0 = (0,0); z1= z0 transformed T;
z2 = (2u,0); z3 = z2 transformed T;
z4 = (3u,-1u); z5 = z4 transformed T;
drawarrow z0--z1 ;
drawarrow z2--z3 ;
drawarrow z4--z5 ;
label.lft(btex $A$ etex, z0);
label.rt(btex $B$ etex, z1);
label.lft(btex $C$ etex, z2);
label.rt(btex $D$ etex, z3);
label.lft(btex $E$ etex, z4);
label.rt(btex $F$ etex, z5);
label.bot(btex $\vect{u}$ etex, 0.5[z0,z1]);
label.bot(btex $\vect{u}$ etex, 0.5[z2,z3]);
label.bot(btex $\vect{u}$ etex, 0.5[z4,z5]);
endfig;




beginfig(2);

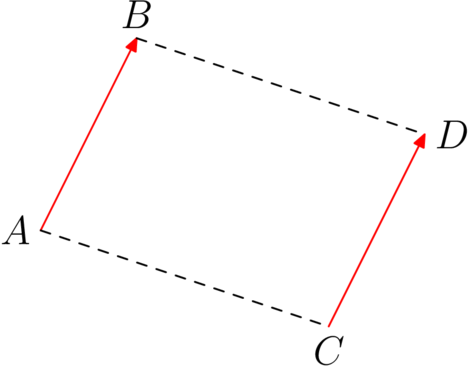

%egalité de deux vecteurs et parallelogramme
numeric u;
pair t;
u = 1cm;
t=(1u,2u);
transform T;
T= identity shifted t;
z0 = (0,0);z1 = z0 transformed T;
z2=(3u,-1u);z3=z2 transformed T ;
drawarrow z0--z1 withcolor red;
drawarrow z2--z3 withcolor red;
draw z0--z2 dashed evenly;
draw z1--z3 dashed evenly;
label.lft(btex $A$ etex, z0);
label.top(btex $B$ etex, z1);
label.bot(btex $C$ etex, z2);
label.rt(btex $D$ etex, z3);
endfig;


beginfig(3);
%addition de deux vecteurs(Chasles)
numeric u;
pair t,r;
u=1cm;
t=(2u,1u);
r=(3u,-2u);
transform T,R;
T= identity shifted t;
R= identity shifted r;
z0=(0,0);z1= z0 transformed T;
z2=z1 transformed R;
drawarrow z0--z1 withcolor green;
drawarrow z1--z2 withcolor green;
drawarrow z0--z2 withcolor red;
label.lft(btex $A$ etex, z0);
label.rt(btex $B$ etex, z1);
label.rt(btex $C$ etex, z2);
label.top(btex $\vect{u}$ etex, 0.5[z0,z1]);
label.top(btex $\vect{v}$ etex, 0.5[z1,z2]);
label.bot(btex $\vect{u}+\vect{v}$ etex, 0.5[z0,z2]);
endfig;


beginfig(4);
%addition de deux vecteurs(parallelogramme)
numeric u;
pair t,r,s;
u=1cm;
t=(2u,1u);
r=(-2u,2u);
transform T,R;
T= identity shifted t;
R= identity shifted r;
z0=(0,0);z1= z0 transformed T;
z2=z0 transformed R;z3=z1 transformed R;
drawarrow z0--z1 withcolor green;
drawarrow z0--z2 withcolor green;
drawarrow z0--z3 withcolor red;
label.bot(btex $A$ etex, z0);
label.rt(btex $B$ etex, z1);
label.lft(btex $D$ etex, z2);
label.top(btex $C$ etex, z3);
label.bot(btex $\vect{u}$ etex, 0.5[z0,z1]);
label.bot(btex $\vect{v}$ etex, 0.5[z0,z2]);
label.rt(btex $\vect{u}+\vect{v}$ etex, 0.7[z0,z3]);
endfig;



beginfig(5);
%soustraction de deux vecteurs
numeric u;
pair t,r,s;
u=1cm;
t=(2u,1u);
r=(2u,-1.5u);
transform T,R,S;
T= identity shifted t;
R= identity shifted -r;
S= identity shifted r;
z0=(0,0);z1= z0 transformed T;
z2=z1 transformed R;
drawarrow z0--z1 withcolor green;
drawarrow z1--z2 withcolor green;
drawarrow z0--z2 withcolor red;
label.bot(btex $\vect{u}$ etex, 0.5[z0,z1]);
label.rt(btex $-\vect{v}$ etex, 0.5[z1,z2]);
label.lft(btex $\vect{u}-\vect{v}$ etex, 0.5[z0,z2]);
z4=(-2u,2u);z5=z4 transformed T;
z6=(-3u,1u); z7=z6 transformed S;
drawarrow z4--z5 withcolor blue;
drawarrow z6--z7 withcolor blue;
label.top(btex $\vect{u}$ etex, 0.5[z4,z5]);
label.rt(btex $\vect{v}$ etex, 0.5[z6,z7]);
endfig;



beginfig(6);
numeric u,a,b;
%multiples d'un vecteur
pair t;
u = 1cm;
t=(1u,2u);
transform T,R,S;
T = identity shifted t;
R = identity shifted 2t;
S = identity shifted -1.5t;
z0 = (0,0); z1= z0 transformed T;
z2 = (-2.5u,0); z3 = z2 transformed R;
z4 = (3u,3u); z5 = z4 transformed S;
drawarrow z0--z1 ;
drawarrow z2--z3 ;
drawarrow z4--z5 ;
label.rt(btex $\vect{u}$ etex, 0.5[z0,z1]);
label.rt(btex $k\vect{u} \, (k>0)$ etex, 0.5[z2,z3]);
label.rt(btex $k\vect{u} \, (k<0)$ etex, 0.5[z4,z5]);
endfig;


beginfig(7);
%colinearite de deux vecteurs et directions paralleles
numeric u;
pair t,r;
u=1cm;
t=(2u,3u);
r=(-1u,-1.5u);
transform T,R;
T= identity shifted t;
R= identity shifted r;
z0=(0,0);z1= z0 transformed T;
z2=(2u,2u);z3=z2 transformed R;
drawarrow z0--z1;
drawarrow z2--z3;
label.lft(btex $A$ etex, z0);
label.rt(btex $B$ etex, z1);
label.rt(btex $D$ etex, z2);
label.rt(btex $C$ etex, z3);
label.top(btex $\vect{u}$ etex, 0.5[z0,z1]);
label.bot(btex $\vect{v}$ etex, 0.5[z2,z3]);
endfig;


beginfig(8);
%coordonnees d'un point dans un repere cartesien du plan
numeric u;
pair i,j;
u=0.7cm;

%definition de l'origine et des vecteurs de base
i=(2u,0u);
j=(0.2u,1u);
transform T,R;
T= identity shifted i;
R= identity shifted j;
z0=(0,0);z1= z0 transformed T;
z2=z0 transformed R;

%trace des axes et de l'origine et des vecteurs de base
drawarrow z0--z1 ;
drawarrow z0--z2 ;
label.llft(btex $O$ etex, z0);
label.bot(btex $\vect{i}$ etex, 0.5[z0,z1]);
label.lft(btex $\vect{j}$ etex, 0.5[z0,z2]);

%trace des projections et des pointilles
z3= z0 shifted 3i;z4= z0 shifted -i;
z5= z0 shifted 4j; z6= z0 shifted -j;
z7 = z0 shifted 3i+4j;
draw z4--z3+i withcolor blue; draw z6--z5+j withcolor blue;
drawarrow z0--z7 withcolor green;
label.rt(btex $M$ etex, z7);
draw z7--z3 dashed evenly;
draw z7--z5 dashed evenly;
label.rt(btex $\Vect{OM}=x\vect{i}+y\vect{j}$ etex, 0.3[z0,z7]);
label.bot(btex $x$ etex, z3);
label.lft(btex $y$ etex, z5);
endfig;




beginfig(9);
%coordonnées d'un vecteur
numeric u;
pair i,j;
u=0.7cm;

i=(2u,0u);
j=(0.2u,1u);
transform T,R;
T= identity shifted i;
R= identity shifted j;
z0=(0,0);
z33= z0 shifted 4i;z4= z0 shifted -i;
z5= z0 shifted 4j; z6= z0 shifted -j;

draw z4--z33 withcolor blue; draw z6--z5 withcolor blue;
z7= z0 shifted i;z8 = z0 shifted j;
label.bot(btex $\vect{j}$ etex, 0.5[z0,z7]);
label.lft(btex $\vect{j}$ etex, 0.5[z0,z8]);
drawarrow z0--z7;
drawarrow z0--z8;

z1=(4u,1u);
z2=z1 shifted 1.5i;
z3=z2 shifted 2j;
drawarrow z1--z2 dashed evenly withcolor green;
drawarrow z2--z3 dashed evenly withcolor green;
drawarrow z1--z3 withcolor red;
label.llft(btex $O$ etex, z0);
label.bot(btex $x\vect{i}$ etex, 0.5[z1,z2]);
label.rt(btex $y\vect{j}$ etex, 0.5[z2,z3]);
label.lrt(btex $\vect{u}$ etex, 0.5[z1,z3]);
z9=z0 shifted 1.5i;
z10=z0 shifted 2j;
z11= z0 shifted 1.5i+2j;
draw z9--z11 dashed evenly withcolor green;
draw z10--z11 dashed evenly withcolor green;
drawarrow z0--z11 withcolor red;
label.top(btex $M(x;y)$ etex, z11);
endfig;


beginfig(10);
%coordonnees d'un vecteur AB
numeric u;
pair i,j;
u=0.7cm;

i=(2u,0u);
j=(0.2u,1u);
transform T,R;
T= identity shifted i;
R= identity shifted j;
z0=(0,0);
z4= z0 shifted 4i;z5= z0 shifted -i;
z6= z0 shifted 4j; z7= z0 shifted -j;

draw z5--z4 withcolor blue; draw z7--z6 withcolor blue;

z8= z0 shifted i;z9 = z0 shifted j;

label.bot(btex $\vect{j}$ etex, 0.8[z0,z8]);
label.lft(btex $\vect{j}$ etex, 0.5[z0,z9]);
drawarrow z0--z8;
drawarrow z0--z9;

z1=z0 shifted 0.5i+1.5j;
z2=z1 shifted 2i;
z3=z2 shifted 2j;

drawarrow z1--z2 withcolor red;
drawarrow z2--z3 withcolor green;
drawarrow z1--z3 withcolor blue;

label.llft(btex $O$ etex, z0);
label.top(btex $A$ etex, z1);
label.top(btex $B$ etex, z3);
label.bot(btex $(x_{B}-x_{A})\vect{i}$ etex, 0.5[z1,z2]);
label.rt(btex $(y_{B}-y_{A})\vect{j}$ etex, 0.5[z2,z3]);

z10=z1 shifted -1.5j; z11= z10 shifted z2-z1; z12= z1 shifted -0.5i;
z13= z12 shifted z3-z2;

draw z1--z10 dashed evenly;
draw z2--z11 dashed evenly;
draw z1--z12 dashed evenly;
draw z3--z13 dashed evenly;

label.bot(btex $x_{A}$ etex, z10);
label.bot(btex $x_{B}$ etex, z11);
label.lft(btex $y_{A}$ etex, z12);
label.lft(btex $y_{B}$ etex, z13);
endfig;


beginfig(11);
%reperage sur une droite
numeric u;
pair t;
u = 1cm;
t=(1u,0u);
transform T;
T = identity shifted t;
z0 = (0,0); z1= z0 transformed T;
z2 = (-4u,0u);
z3 = (4u,0u);
z4 = (-2u,0u);

drawarrow z0--z1 withcolor red;
draw z2--z3 ;
dotlabel.bot(btex $0$ etex, z0);
dotlabel.bot(btex $1$ etex, z1);
dotlabel.bot(btex $-2$ etex, z4);
label.top(btex $M$ etex, z4);
label.top(btex $0$ etex, z0);
label.bot(btex $\vect{i}$ etex, 0.5[z0,z1]);
endfig;


beginfig(12);
%repere cartesien dans le plan
numeric u;
pair i,j;
u=1cm;

i=(1u,0u);
j=(0.2u,0.5u);
transform T,R;
T= identity shifted i;
R= identity shifted j;
z0=(0,0);z1= z0 transformed T;
z2=z0 transformed R;

drawarrow z0--z1 ;
drawarrow z0--z2 ;
label.llft(btex $O$ etex, z0);
label.bot(btex $\vect{i}$ etex, 0.5[z0,z1]);
label.lft(btex $\vect{j}$ etex, 0.5[z0,z2]);
z3= z0 shifted 3i;z4= z0 shifted -i;
z5= z0 shifted 3j; z6= z0 shifted -j;
draw z4--z3+i withcolor blue; draw z6--z5+j withcolor blue;
endfig;


beginfig(13);
%repere cartesien orthogonal dans le plan
numeric u;
pair i,j;
u=1cm;

i=(1u,0u);
j=(0u,0.5u);
transform T,R;
T= identity shifted i;
R= identity shifted j;
z0=(0,0);z1= z0 transformed T;
z2=z0 transformed R;

drawarrow z0--z1 ;
drawarrow z0--z2 ;
label.llft(btex $O$ etex, z0);
label.bot(btex $\vect{i}$ etex, 0.5[z0,z1]);
label.lft(btex $\vect{j}$ etex, 0.5[z0,z2]);
z3= z0 shifted 3i;z4= z0 shifted -i;
z5= z0 shifted 3j; z6= z0 shifted -j;
draw z4--z3+i withcolor blue; draw z6--z5+j withcolor blue;
endfig;


beginfig(14);
%repere cartesien orthonormal dans le plan
numeric u;
pair i,j;
u=1cm;

i=(1u,0u);
j=(0u,1u);
transform T,R;
T= identity shifted i;
R= identity shifted j;
z0=(0,0);z1= z0 transformed T;
z2=z0 transformed R;

drawarrow z0--z1 ;
drawarrow z0--z2 ;
label.llft(btex $O$ etex, z0);
label.bot(btex $\vect{i}$ etex, 0.5[z0,z1]);
label.lft(btex $\vect{j}$ etex, 0.5[z0,z2]);
z3= z0 shifted 3i;z4= z0 shifted -i;
z5= z0 shifted 2j; z6= z0 shifted -0.5j;
draw z4--z3+i withcolor blue; draw z6--z5+j withcolor blue;
endfig;
end
