Fichier figure005.mp (figure 2) — Modifié le 5 Avril 2008 à 18 h 50

figure005.mp (figure 2)
Source

%@AUTEUR:Guillaume Connan

prologues:=2;

verbatimtex
%&latex
\documentclass{article}
\usepackage[upright]{fourier}
\begin{document}
etex

input geometriesyr16

typerepre:="persp";

figureespace(-20u,-20u,20u,20u);
 Initialisation(5,30,35,200);
 color A,B,C,D,E,F,G,H,I,J,K,L,M;
 trace Cube(A,B,C,D,E,F,G,H);
 I=1/3[F,A];
 J=2/3[D,C];
 K=1/4[H,C];
 L=IntersectionDroite(J,K,E,H);
 label.top(btex A etex,Projette(L))withcolor white;
 path section;
 section=buildcycle(IntersectionPlanPlan(H,G,F,I,J,K),IntersectionPlanPlan(A,G,F,I,J,K),IntersectionPlanPlan(A,E,F,I,J,K),IntersectionPlanPlan(A,D,C,I,J,K),segment(J,K),IntersectionPlanPlan(G,H,C,I,J,K));
 nomme.llft(A);
 nomme.bot(B);
 nomme.rt(C);
 nomme.ulft(D);
 nomme.ulft(E);
 nomme.lft(F);
 nomme.lrt(G);
 nomme.urt(H);
 marque_p:="plein";
 nomme.lft(I);
 nomme.top(J);
 nomme.lft(K);
 finespace;

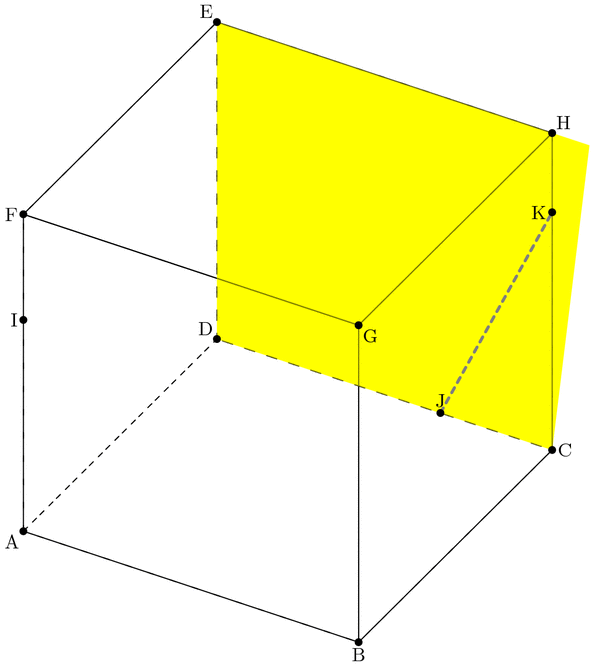

%2
figureespace(-20u,-20u,20u,20u);
 Initialisation(5,30,35,200);
 color A,B,C,D,E,F,G,H,I,J,K, L,M;
 trace Cube(A,B,C,D,E,F,G,H);
 I=1/3[F,A];
 J=2/3[D,C];
 K=1/4[H,C];
 L=IntersectionDroite(J,K,E,H);
 label.top(btex A etex,Projette(L))withcolor white;
 trace segment(J,K) dashed evenly withcolor bleu withpen pencircle scaled 1.5bp;
 path section,fond;
 section=buildcycle(IntersectionPlanPlan(H,G,F,I,J,K),IntersectionPlanPlan(A,G,F,I,J,K),IntersectionPlanPlan(A,E,F,I,J,K),IntersectionPlanPlan(A,D,C,I,J,K),segment(J,K),IntersectionPlanPlan(G,H,C,I,J,K));
 fillcolor:=jaune;
 fond=polygone(D,C,L,E);
 transparence fond;
 nomme.llft(A);
 nomme.bot(B);
 nomme.rt(C);
 nomme.ulft(D);
 nomme.ulft(E);
 nomme.lft(F);
 nomme.lrt(G);
 nomme.urt(H);
 marque_p:="plein";
 nomme.lft(I);
 nomme.top(J);
 nomme.lft(K);
 finespace;

%3

figureespace(-20u,-20u,20u,20u);
 Initialisation(5,30,35,200);
 color A,B,C,D,E,F,G,H,I,J,K, L,M;
 trace Cube(A,B,C,D,E,F,G,H);
 I=1/3[F,A];
 J=2/3[D,C];
 K=1/4[H,C];
 L=IntersectionDroite(J,K,E,H);
 label.top(btex A etex,Projette(L))withcolor white;
 trace segment(J,K) dashed evenly withcolor bleu withpen pencircle scaled 1.5bp;
 trace segment(K,L) withcolor bleu withpen pencircle scaled 1.5bp;
 path section;
 section=buildcycle(IntersectionPlanPlan(H,G,F,I,J,K),IntersectionPlanPlan(A,G,F,I,J,K),IntersectionPlanPlan(A,E,F,I,J,K),IntersectionPlanPlan(A,D,C,I,J,K),segment(J,K),IntersectionPlanPlan(G,H,C,I,J,K));
 fillcolor:=jaune;
 path fond;
 fond=polygone(D,C,L,E);
 transparence fond;
 nomme.llft(A);
 nomme.bot(B);
 nomme.rt(C);
 nomme.ulft(D);
 nomme.ulft(E);
 nomme.lft(F);
 nomme.lrt(G);
 nomme.urt(H);
 marque_p:="plein";
 nomme.lft(I);
 nomme.top(J);
 nomme.lft(K);
 finespace;

%4

figureespace(-20u,-20u,20u,20u);
 Initialisation(5,30,35,200);
 color A,B,C,D,E,F,G,H,I,J,K, L,M;
 trace Cube(A,B,C,D,E,F,G,H);
 I=1/3[F,A];
 J=2/3[D,C];
 K=1/4[H,C];
 L=IntersectionDroite(J,K,E,H);
 trace segment(J,K) dashed evenly withcolor bleu withpen pencircle scaled 1.5bp;
 trace segment(K,L) withcolor bleu withpen pencircle scaled 1.5bp;
 trace segment(H,L) withcolor bleu withpen pencircle scaled 1.5bp;
 path section;
 section=buildcycle(IntersectionPlanPlan(H,G,F,I,J,K),IntersectionPlanPlan(A,G,F,I,J,K),IntersectionPlanPlan(A,E,F,I,J,K),IntersectionPlanPlan(A,D,C,I,J,K),segment(J,K),IntersectionPlanPlan(G,H,C,I,J,K));
 fillcolor:=jaune;
 path fond;
 fond=polygone(D,C,L,E);
 transparence fond;
 nomme.top(L);
 nomme.llft(A);
 nomme.bot(B);
 nomme.rt(C);
 nomme.ulft(D);
 nomme.ulft(E);
 nomme.lft(F);
 nomme.lrt(G);
 nomme.urt(H);
 marque_p:="plein";
 nomme.lft(I);
 nomme.top(J);
 nomme.lft(K);
 finespace;

%5

figureespace(-20u,-20u,20u,20u);
 Initialisation(5,30,35,200);
 color A,B,C,D,E,F,G,H,I,J,K, L,M;
 trace Cube(A,B,C,D,E,F,G,H);
 I=1/3[F,A];
 J=2/3[D,C];
 K=1/4[H,C];
 L=IntersectionDroite(J,K,E,H);
 trace segment(J,K) dashed evenly withcolor bleu withpen pencircle scaled 1.5bp;
 trace segment(K,L) withcolor bleu withpen pencircle scaled 1.5bp;
 trace segment(H,L) withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(A,G,F,I,J,K) cutbefore segment(F,G) cutafter segment(F,A) withcolor bleu withpen pencircle scaled 1.5bp;

 path section;
 section=buildcycle(IntersectionPlanPlan(H,G,F,I,J,K),IntersectionPlanPlan(A,G,F,I,J,K),IntersectionPlanPlan(A,E,F,I,J,K),IntersectionPlanPlan(A,D,C,I,J,K),segment(J,K),IntersectionPlanPlan(G,H,C,I,J,K));

 fillcolor:=jaune;
 path face;
 face=polygone(F,G,B,A);
 transparence face;
 nomme.top(L);
 nomme.llft(A);
 nomme.bot(B);
 nomme.rt(C);
 nomme.ulft(D);
 nomme.ulft(E);
 nomme.lft(F);
 nomme.lrt(G);
 nomme.urt(H);
 marque_p:="plein";
 nomme.lft(I);
 nomme.top(J);
 nomme.lft(K);
 finespace;

%6

figureespace(-20u,-20u,20u,20u);
 Initialisation(5,30,35,200);
 color A,B,C,D,E,F,G,H,I,J,K, L,M;
 trace Cube(A,B,C,D,E,F,G,H);
 I=1/3[F,A];
 J=2/3[D,C];
 K=1/4[H,C];
 L=IntersectionDroite(J,K,E,H);
 trace segment(J,K) dashed evenly withcolor bleu withpen pencircle scaled 1.5bp;
 trace segment(K,L) withcolor bleu withpen pencircle scaled 1.5bp;
 trace segment(H,L) withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(A,G,F,I,J,K) cutbefore segment(F,G) cutafter segment(F,A) withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(H,G,F,I,J,K) cutbefore segment(F,G) cutafter segment(L,H) withcolor bleu withpen pencircle scaled 1.5bp;

 path section;
 section=buildcycle(IntersectionPlanPlan(H,G,F,I,J,K),IntersectionPlanPlan(A,G,F,I,J,K),IntersectionPlanPlan(A,E,F,I,J,K),IntersectionPlanPlan(A,D,C,I,J,K),segment(J,K),IntersectionPlanPlan(G,H,C,I,J,K));

 path fond;
 fond=polygone(F,E,L,G);
 transparence fond;
 nomme.top(L);
 nomme.llft(A);
 nomme.bot(B);
 nomme.rt(C);
 nomme.ulft(D);
 nomme.ulft(E);
 nomme.lft(F);
 nomme.lrt(G);
 nomme.urt(H);
 marque_p:="plein";
 nomme.lft(I);
 nomme.top(J);
 nomme.lft(K);
 finespace;

%7

figureespace(-20u,-20u,20u,20u);
 Initialisation(5,30,35,200);
 color A,B,C,D,E,F,G,H,I,J,K, L,M;
 trace Cube(A,B,C,D,E,F,G,H);
 I=1/3[F,A];
 J=2/3[D,C];
 K=1/4[H,C];
 L=IntersectionDroite(J,K,E,H);
 trace segment(J,K) dashed evenly withcolor bleu withpen pencircle scaled 1.5bp;
 trace segment(K,L) withcolor bleu withpen pencircle scaled 1.5bp;
 trace segment(H,L) withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(A,G,F,I,J,K) cutbefore segment(F,G) cutafter segment(F,A) withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(H,G,F,I,J,K) cutbefore segment(F,G) cutafter segment(L,H) withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(A,D,C,I,J,K) cutbefore segment(D,C) cutafter segment(D,A)  dashed evenly withcolor bleu withpen pencircle scaled 1.5bp;

 path section;
 section=buildcycle(IntersectionPlanPlan(H,G,F,I,J,K),IntersectionPlanPlan(A,G,F,I,J,K),IntersectionPlanPlan(A,E,F,I,J,K),IntersectionPlanPlan(A,D,C,I,J,K),segment(J,K),IntersectionPlanPlan(G,H,C,I,J,K));
 fillcolor:=orange;
 path fond;
 fond=polygone(D,A,B,C);
 transparence fond;
 nomme.top(L);
 nomme.llft(A);
 nomme.bot(B);
 nomme.rt(C);
 nomme.ulft(D);
 nomme.ulft(E);
 nomme.lft(F);
 nomme.lrt(G);
 nomme.urt(H);
 marque_p:="plein";
 nomme.lft(I);
 nomme.top(J);
 nomme.lft(K);
 finespace;

%8
figureespace(-20u,-20u,20u,20u);
 Initialisation(5,30,35,200);
 color A,B,C,D,E,F,G,H,I,J,K, L,M;
 trace Cube(A,B,C,D,E,F,G,H);
 I=1/3[F,A];
 J=2/3[D,C];
 K=1/4[H,C];
 L=IntersectionDroite(J,K,E,H);
 fillcolor:=jaune;
 path fond;
 fond=polygone(F,E,D,A);
 transparence fond;
 trace segment(J,K) dashed evenly withcolor bleu withpen pencircle scaled 1.5bp;
 trace segment(K,L) withcolor bleu withpen pencircle scaled 1.5bp;
 trace segment(H,L) withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(A,G,F,I,J,K) cutbefore segment(F,G) cutafter segment(F,A) withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(H,G,F,I,J,K) cutbefore segment(F,G) cutafter segment(L,H) withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(A,D,C,I,J,K) cutbefore segment(D,C) cutafter segment(D,A)  dashed evenly withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(A,E,F,I,J,K) cutbefore segment(F,A) cutafter segment(D,A)  dashed evenly withcolor bleu withpen pencircle scaled 1.5bp;

 path section;
 section=buildcycle(IntersectionPlanPlan(H,G,F,I,J,K),IntersectionPlanPlan(A,G,F,I,J,K),IntersectionPlanPlan(A,E,F,I,J,K),IntersectionPlanPlan(A,D,C,I,J,K),segment(J,K),IntersectionPlanPlan(G,H,C,I,J,K));

 nomme.top(L);
 nomme.llft(A);
 nomme.bot(B);
 nomme.rt(C);
 nomme.ulft(D);
 nomme.ulft(E);
 nomme.lft(F);
 nomme.lrt(G);
 nomme.urt(H);
 marque_p:="plein";
 nomme.lft(I);
 nomme.top(J);
 nomme.lft(K);
 finespace;

%9
figureespace(-20u,-20u,20u,20u);
 Initialisation(5,30,35,200);
 color A,B,C,D,E,F,G,H,I,J,K, L,M;
 trace Cube(A,B,C,D,E,F,G,H);
 I=1/3[F,A];
 J=2/3[D,C];
 K=1/4[H,C];
 L=IntersectionDroite(J,K,E,H);
 trace segment(J,K) dashed evenly withcolor bleu withpen pencircle scaled 1.5bp;
 trace segment(K,L) withcolor bleu withpen pencircle scaled 1.5bp;
 trace segment(H,L) withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(A,G,F,I,J,K) cutbefore segment(F,G) cutafter segment(F,A) withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(H,G,F,I,J,K) cutbefore segment(F,G) cutafter segment(L,H) withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(A,D,C,I,J,K) cutbefore segment(D,C) cutafter segment(D,A)  dashed evenly withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(A,E,F,I,J,K) cutbefore segment(F,A) cutafter segment(D,A)  dashed evenly withcolor bleu withpen pencircle scaled 1.5bp;
  trace IntersectionPlanPlan(G,H,C,I,J,K) cutbefore segment(H,G) cutafter segment(H,C) withcolor bleu withpen pencircle scaled 1.5bp;

 path section;
 section=buildcycle(IntersectionPlanPlan(H,G,F,I,J,K),IntersectionPlanPlan(A,G,F,I,J,K),IntersectionPlanPlan(A,E,F,I,J,K),IntersectionPlanPlan(A,D,C,I,J,K),segment(J,K),IntersectionPlanPlan(G,H,C,I,J,K));
 fillcolor:=orange;
 fillcolor:=jaune;
 path fond;
 fond=polygone(G,B,C,H);
 transparence fond;
 trace IntersectionPlanPlan(H,G,F,I,J,K) cutbefore segment(F,G) cutafter segment(L,H) withcolor bleu withpen pencircle scaled 1.5bp;
 nomme.top(L);
 nomme.llft(A);
 nomme.bot(B);
 nomme.rt(C);
 nomme.ulft(D);
 nomme.ulft(E);
 nomme.lft(F);
 nomme.lrt(G);
 nomme.urt(H);
 marque_p:="plein";
 nomme.lft(I);
 nomme.top(J);
 nomme.lft(K);
 finespace;

%10
figureespace(-20u,-20u,20u,20u);
 Initialisation(5,30,35,200);
 color A,B,C,D,E,F,G,H,I,J,K, L,M,N,O,P;
 trace Cube(A,B,C,D,E,F,G,H);
 I=1/3[F,A];
 J=2/3[D,C];
 K=1/4[H,C];
 L=IntersectionDroite(J,K,E,H);
 trace segment(J,K) dashed evenly withcolor bleu withpen pencircle scaled 1.5bp;
 trace segment(K,L) withcolor bleu withpen pencircle scaled 1.5bp;
 trace segment(H,L) withcolor bleu withpen pencircle scaled 1.5bp;

 I-N=whatever*(J-K);
 F-N=whatever*(F-G);;
 A-P=whatever*(A-D);
 G-O=whatever*(G-H);
 N-O=whatever*(N-L);
 P-J=whatever*(N-O);
 P-I=whatever*(K-O);

 trace IntersectionPlanPlan(A,G,F,I,J,K) cutbefore segment(F,G) cutafter segment(F,A) withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(H,G,F,I,J,K) cutbefore segment(F,G) cutafter segment(L,H) withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(A,D,C,I,J,K) cutbefore segment(D,C) cutafter segment(D,A)  dashed evenly withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(A,E,F,I,J,K) cutbefore segment(F,A) cutafter segment(D,A)  dashed evenly withcolor bleu withpen pencircle scaled 1.5bp;
  trace IntersectionPlanPlan(G,H,C,I,J,K) cutbefore segment(H,G) cutafter segment(H,C) withcolor bleu withpen pencircle scaled 1.5bp;

 path section;
 section=buildcycle(IntersectionPlanPlan(H,G,F,I,J,K),IntersectionPlanPlan(A,G,F,I,J,K),IntersectionPlanPlan(A,E,F,I,J,K),IntersectionPlanPlan(A,D,C,I,J,K),segment(J,K),IntersectionPlanPlan(G,H,C,I,J,K));
fillcolor:=ciel;
 transparence section;
 nomme.top(L);nomme.top(O);nomme.top(N);nomme.bot(P);
 nomme.llft(A);
 nomme.bot(B);
 nomme.rt(C);
 nomme.ulft(D);
 nomme.ulft(E);
 nomme.lft(F);
 nomme.lrt(G);
 nomme.urt(H);
 marque_p:="plein";
 nomme.lft(I);
 nomme.top(J);
 nomme.lft(K);
 finespace;

 %11

figureespace(-20u,-20u,20u,20u);
 Initialisation(5,30,35,200);
 color A,B,C,D,E,F,G,H,I,J,K, L,M,N,O,P;
 picture c;
 c:=Cube(A,B,C,D,E,F,G,H);
 I=1/3[F,A];
 J=2/3[D,C];
 K=1/4[H,C];
 L=IntersectionDroite(J,K,E,H);
 trace segment(J,K)  withcolor bleu withpen pencircle scaled 1.5bp;

 I-N=whatever*(J-K);
 F-N=whatever*(F-G);;
 A-P=whatever*(A-D);
 G-O=whatever*(G-H);
 N-O=whatever*(N-L);
 P-J=whatever*(N-O);
 P-I=whatever*(K-O);

 trace segment(J,K)  withcolor bleu withpen pencircle scaled 1.5bp;

 trace IntersectionPlanPlan(A,G,F,I,J,K) cutbefore segment(F,G) cutafter segment(F,A) withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(H,G,F,I,J,K) cutbefore segment(F,G) cutafter segment(O,H) withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(A,D,C,I,J,K) cutbefore segment(D,C) cutafter segment(D,A)   withcolor bleu withpen pencircle scaled 1.5bp;
 trace IntersectionPlanPlan(A,E,F,I,J,K) cutbefore segment(F,A) cutafter segment(D,A)   withcolor bleu withpen pencircle scaled 1.5bp;
  trace IntersectionPlanPlan(G,H,C,I,J,K) cutbefore segment(H,G) cutafter segment(H,C) withcolor bleu withpen pencircle scaled 1.5bp;
  label.llft(btex A etex,Projette(A))withcolor white;
  label.bot(btex B etex,Projette(B))withcolor white;
  label.rt(btex A etex,Projette(C))withcolor white;
  label.lrt(btex A etex,Projette(G))withcolor white;
  label.top(btex A etex,Projette(L))withcolor white;

  trace segment(F,I);
  trace segment(F,N);
  trace segment(F,E);
  trace segment(E,H);
  trace segment(H,O);
  trace segment(H,K);
  trace segment(E,D) withpen pencircle dashed evenly;
  trace segment(P,D) withpen pencircle dashed evenly;
  trace segment(J,D) withpen pencircle dashed evenly;

  path section;
 section=buildcycle(IntersectionPlanPlan(H,G,F,I,J,K),IntersectionPlanPlan(A,G,F,I,J,K),IntersectionPlanPlan(A,E,F,I,J,K),IntersectionPlanPlan(A,D,C,I,J,K),segment(J,K),IntersectionPlanPlan(G,H,C,I,J,K));
fillcolor:=ciel;
 transparence section;
 nomme.top(O);nomme.top(N);nomme.bot(P);
 nomme.ulft(D);
 nomme.ulft(E);
 nomme.lft(F);
 nomme.urt(H);
 marque_p:="plein";
 nomme.lft(I);
 nomme.top(J);
 nomme.lft(K);

 finespace;

end
