Fichier seguin-oa2009.mp (figure 4) — Modifié le 4 Octobre 2009 à 23 h 28
path quart, demi, troisquart, bergerie, bord, terrain;
quart = (reverse fullcircle) scaled 2 cutbefore (0,1);
demi = (reverse fullcircle) scaled 2 cutbefore (-1,0);
troisquart = fullcircle scaled 2 cutbefore (0,1);
bergerie = (0,0) -- (6,0) -- (6,4) -- (0,4) -- cycle;
terrain := (-5,-11)--(17,-11) -- (17, 11) -- (-5,11) -- cycle;
bord := (quart rotated 90 scaled 4) --
( reverse ( troisquart rotated 90 scaled 10 shifted (6,0) ) ) --
(quart rotated 90 scaled 6 shifted (6,4)) --
cycle;
beginfig(1);
draw bergerie scaled 10;
draw (troisquart rotated 90 scaled 10 shifted (6,0)) scaled 10;
draw (quart rotated 90 scaled 6 shifted (6,4)) scaled 10;
draw (quart rotated 90 scaled 4) scaled 10;
endfig;
beginfig(2);
fill terrain scaled 10 withcolor (0.3,0.8,0.3);
fill bord scaled 10 withcolor (0.6,1,0.6);
% draw bord scaled 10 withcolor (0.6,1,0.6);
draw ((6,0)--(6,10)) scaled 10 withcolor 0.7white;
draw ((-4,0)--(6,0)) scaled 10 withcolor 0.7white;
fill bergerie scaled 10 withcolor 0.7white;
draw bergerie scaled 10;
fill fullcircle scaled 3 shifted ((6,0) scaled 10) withcolor black;
fill fullcircle scaled 2 shifted ((6,0) scaled 10) withcolor (1,1,0);
endfig;
x := 2.5;
bord := (0,x) -- ((quart) rotated 180 scaled (4-x) shifted (0,4)) --
((quart) rotated 90 scaled (10-x) shifted (6,4)) --
((demi) rotated -90 scaled 10 shifted (6,4-x)) --
((quart) rotated -180 scaled (6+x) shifted (6,0))--
((quart) rotated -270 scaled x shifted (0,0)) -- cycle;
beginfig(3);
x := 2.5;
fill (terrain shifted (0.5,1.4)) scaled 10 withcolor (0.3,0.8,0.3);
fill bord scaled 10 withcolor (0.6,1,0.6);
% draw bord scaled 10 withcolor (0.6,1,0.6);
draw ((6,14-x)--(6,-x-6)) scaled 10 withcolor 0.7white;
draw ((6,0)--(-x,0)) scaled 10 withcolor 0.7white;
draw ((6,4)--(x-4,4)) scaled 10 withcolor 0.7white;
fill bergerie scaled 10 withcolor 0.7white;
draw bergerie scaled 10;
fill fullcircle scaled 3 shifted ((6,4-x) scaled 10) withcolor black;
fill fullcircle scaled 2 shifted ((6,4-x) scaled 10) withcolor (1,1,0);
endfig;
y := 2;
bord := (y,0) -- ((quart) rotated 270 scaled y shifted (0,0)) --
((quart) rotated 180 scaled (y+4) shifted (0,4)) --
((demi) rotated 0 scaled 10 shifted (6-y,4)) --
((quart) rotated -90 scaled (10-y) shifted (6,4))--
((quart) rotated 180 scaled (6-y) shifted (6,0)) -- cycle;

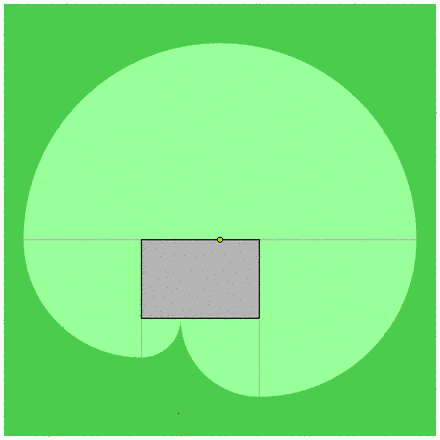

beginfig(4);
y := 2;
fill (terrain shifted (-2,5)) scaled 10 withcolor (0.3,0.8,0.3);
fill bord scaled 10 withcolor (0.6,1,0.6);
% draw bord scaled 10 withcolor (0.6,1,0.6);
draw ((16-y,4)--(-4-y,4)) scaled 10 withcolor 0.7white;
draw ((6,4)--(6,y-6)) scaled 10 withcolor 0.7white;
draw ((0,0)--(0,-y)) scaled 10 withcolor 0.7white;
fill bergerie scaled 10 withcolor 0.7white;
draw bergerie scaled 10;
fill fullcircle scaled 3 shifted ((6-y,4) scaled 10) withcolor black;
fill fullcircle scaled 2 shifted ((6-y,4) scaled 10) withcolor (1,1,0);
endfig;
end
