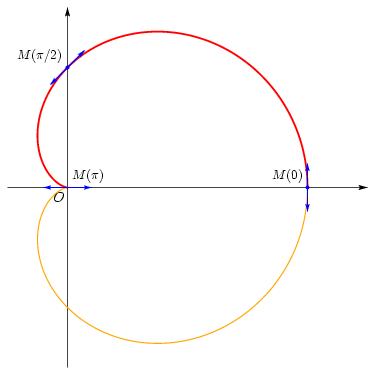

Présentation de cardioide.jps

/syracuse/bbgraf/albums/coniques/cardioide.jpg
%% auteur : gh 120 setxunit -0.5 2.5 setxrange -1.5 1.5 setyrange traceaxes axesarrow /O {0 0} def 16 setfontsize setTimesItalic (O) O dltext /rho {Cos 1 add} def /rho' {Sin neg} def /X {dup rho exch Cos mul} def /Y {dup rho exch Sin mul} def /X' {settvar t rho' t Cos mul t rho t Sin mul sub} def /Y' {settvar t rho' t Sin mul t rho t Cos mul add} def orange 1 setcurvelinewidth pi pi 2 mul settrange {X} {Y} courbeparam 1.7 setcurvelinewidth rouge 0 pi settrange {X} {Y} courbeparam bleu 0.4 settailletangente 1 setlinewidth 0 (X)(Y) ptangente pi 2 div (X)(Y) ptangente %% pi (X)(Y) ptangente [POINT SINGULIER !] -0.2 0 0.2 0 (<->) line noir <tex> $$ M(0) $$ </tex> 0 X 0 Y [1.3 1.3] ultexlabel <tex> $$ M(\pi /2) $$ </tex> pi 2 div X pi 2 div Y [1.3 1.3] ultexlabel <tex> $$ M(\pi) $$ </tex> pi X pi Y [1.3 1.3] urtexlabel
