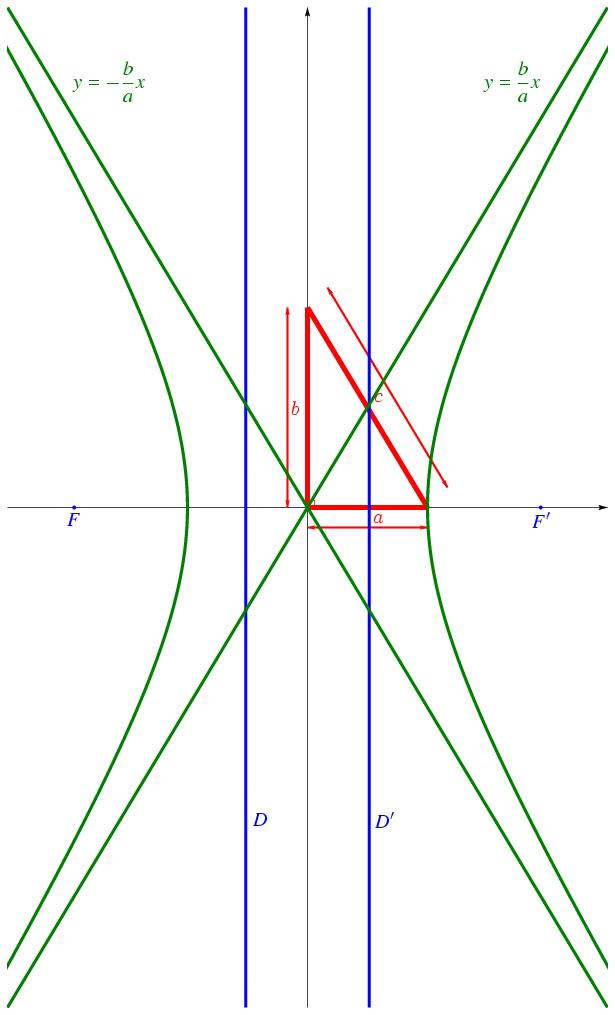

Présentation de 307.jps

%% auteur : gh

600 setwidth
1000 setheight
-1.5 1.5 setxrange
-2.5 2.5 setyrange

/O {0 0} def
/a 0.6 def
/b 1 def
/c {a 2 exp b 2 exp add sqrt} def
/F {c neg 0} def
/F' {c 0} def
/Dx {a 2 exp c div neg 0} def
/Dx' {a 2 exp c div 0} def
/D {Dx Dx 0 1 addv} def
/D' {Dx' Dx' 0 1 addv} def


/X {cosh a mul} def
/X2 {cosh a mul neg} def
/Y {sinh b mul} def

traceaxes
axesarrow

5 setlinewidth
rouge
O a 0 (-) line
O 0 b (-) line
a 0 0 b (-) line
a 0 O 0 b angledroit

2 setlinewidth
/dy {0 0.1} def
/dx {0.1 0} def
O dy subv a 0 dy subv (<->) line
O dx subv 0 b dx subv (<->) line
0 b dx dy addv addv a 0 dx dy addv addv (<->) line


<latex>
$$c$$
</latex>
a 0 0 b milieu [2 dup] urtexlabel
<latex>
$$b$$
</latex>
O 0 b milieu [2 dup] cltexlabel
<latex>
$$a$$
</latex>
a 0 O milieu [2 dup] drtexlabel

noir


3 setlinewidth
vert
-4 4 settrange
{X} {Y} courbeparam
{X2} {Y} courbeparam

3 setlinewidth
continu
bleu
[F F'] points
D droite
D' droite

<tex>
$$F$$
</tex>
F [2 dup] dctexlabel
<tex>
$$F'$$
</tex>
F' [2 dup] dctexlabel
<tex>
$$D$$
</tex>
Dx 0 1.5 subv [2 dup] drtexlabel
<tex>
$$D'$$
</tex>
Dx' 0 1.5 subv [2 dup] drtexlabel

vert
O a b droite
O a b neg droite

<tex>
$$
y={b \over a} x
$$
</tex>
O a 2 mul b 2 mul addv  [2 dup] ultexlabel
<tex>
$$
y=-{b \over a} x
$$
</tex>
O a 2 mul neg b 2 mul addv  [2 dup] urtexlabel
