Présentation de 327.jps

%% auteur : gh

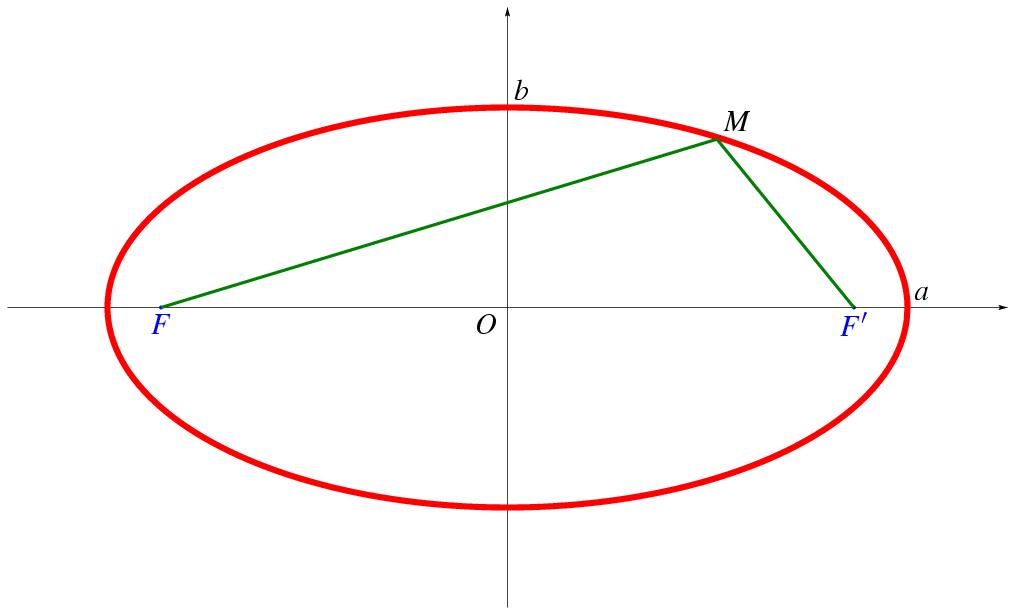

%% conique_ellipse_bifocale.jps

1000 setwidth
600 setheight
-2.5 2.5 setxrange
-1.5 1.5 setyrange

/O {0 0} def
/a 2 def
/b 1 def
/c {a 2 exp b 2 exp sub sqrt} def
/F {c neg 0} def
/F' {c 0} def
/Dx {a 2 exp c div neg 0} def
/Dx' {a 2 exp c div 0} def
/D {Dx Dx 0 1 addv} def
/D' {Dx' Dx' 0 1 addv} def


/X {Cos a mul} def
/Y {Sin b mul} def

traceaxes
axesarrow
<tex>
$$O$$
</tex>
O [3 dup] dltexlabel


6 setlinewidth
rouge
0 pi 2 mul settrange
{X} {Y} courbeparam

3 setlinewidth
continu
bleu
[F F'] points
<tex>
$$F$$
</tex>
F [3 dup] dctexlabel
<tex>
$$F'$$
</tex>
F' [3 dup] dctexlabel

noir
<tex>
$a$
</tex>
a 0 [3 dup] urtexlabel
<tex>
$b$
</tex>
0 b [3 dup] urtexlabel

3 setlinewidth
/t {pi 3 div} def
/M {t dup X Y} def

noir
<tex>
$M$
</tex>
M [3 dup] urtexlabel

vert
F M (-) line
F' M (-) line
