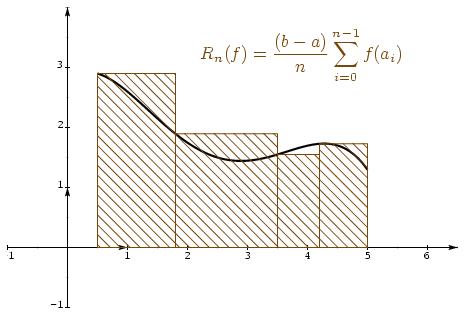

Présentation de 072.jps

%% PhS

%%


%% échelle et étendue de l'image

60 setxunit
-1 6.5  setxrange
-1 4  setyrange


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%%  DANGER !! Il ne faut pas utiliser de variables

%%  DANGER !! qui commence par les lettres :

%%  DANGER !! xmin, xmax, ymin et ymax...

%%  DANGER !! Utiliser x_min, y_min...

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%





%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%% procédures

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%



%% on donne ici x(t)

/xdet {
1 dict begin
	/t exch def
	t
end
	} def

%% on donne ici y(t)

/ydet {
1 dict begin
	/t exch def
	t dup mul dup mul -0.05 mul t dup mul 0.4 mul add t -0.3 mul add 1.5 add
end
	} def


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%% définitions des couleurs

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


/coul1 {120 255 div 70 255 div 9 255 div setrgbcolor} def



%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%% tracés

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


%% tracé des axes et du point Origine

1 setlinewidth
15 setfontsize
noir
continu
traceaxes
marks
tracerepere



2 setlinewidth
noir
continu
-2 2.5 settrange
{xdet 2.5 add} {ydet} courbeparam


/fillstyle {hachure} def

1 setlinewidth


coul1
continu
[0.5 0 0.5 -2 ydet] (-) ligne
[5 0 5 2.5 ydet] (-) ligne


[0.5 0 0.5 dup -2.5 add ydet 1.8 0.5 -2.5 add ydet 1.8 0] polygone*
[1.8 0 1.8 dup -2.5 add ydet 3.5 1.8 -2.5 add ydet 3.5 0] polygone*
[3.5 0 3.5 dup -2.5 add ydet 4.2 3.5 -2.5 add ydet 4.2 0] polygone*
[4.2 0 4.2 dup -2.5 add ydet 5 4.2 -2.5 add ydet 5 0] polygone*



%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%% texte

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

setTimesItalic


coul1
<latex>
$\displaystyle R_n(f)=\frac{(b-a)}{n}\sum_{i=0}^{n-1}f(a_i)$
</latex>
3.9 3.2 [1.8 dup] cctexlabel
