Fichier JPS

Présentation de logic_set.jps

Retour Texte non formaté Éditer PostScript

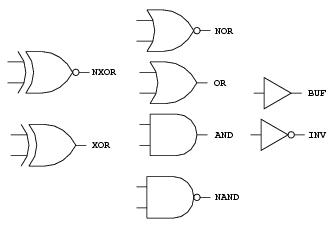

/syracuse/bbgraf/albums/logic/logic_set.jpg


autocrop
uselogic
-9 8 setxrange
/logicWireLength .5 def
setCourierBold

0  -1   (AND)  dupc ccpict 3 1 roll 1.8 0 addv crtext
0  -4   (NAND) dupc ccpict 3 1 roll 1.8 0 addv crtext
0  1.5  (OR)   dupc ccpict 3 1 roll 1.8 0 addv crtext
0  4    (NOR)  dupc ccpict 3 1 roll 1.8 0 addv crtext
5  -1   (INV)  dupc ccpict 3 1 roll 1.3 0 addv crtext
5  1    (BUF)  dupc ccpict 3 1 roll 1.3 0 addv crtext
-6 -1.5 (XOR)  dupc ccpict 3 1 roll 1.9 0 addv crtext
-6 2    (NXOR) dupc ccpict 3 1 roll 1.9 0 addv crtext
