Présentation de 141.jps

%% PhS

%%


%% échelle et étendue de l'image

50 setxunit
-1.5 7  setxrange
-1 2.5  setyrange
/xgauche -6 def    %% c'est la limite gauche de l'image

/xdroite 6 def     %% c'est la limite droite de l'image

/ybasse  -4 def    %% c'est la limite basse de l'image

/yhaute  4 def     %% c'est la limite haute de l'image


10 4 point

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%%  DANGER !! Il ne faut pas utiliser de variables

%%  DANGER !! qui commence par les lettres :

%%  DANGER !! xmin, xmax, ymin et ymax...

%%  DANGER !! Utiliser x_min, y_min...

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%



%% plages initiales pour les paramètres (peuvent être modifiées pour chaque fonctions tracées

/x_min -5 def
/x_max 5 def
/t_min -9 def
/t_max 9 def


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%% procédures

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%



%% on donne ici x(t)

/xdet {
1 dict begin
	/t exch def
	t
end
	} def

%% on donne ici y(t)

/ydet {
1 dict begin
	/t exch def
	t dup mul
end
	} def

%% on donne ici x'(t)

/xpdet {
1 dict begin
	/t exch def
	t cos
end
	} def

%% on donne ici y'(t)

/ypdet {
1 dict begin
	/t exch def
	t sin
end
	} def


%% dessine un bout de droite

/bddroite { %% Ax Ay Bx By kg (=proportion vers A) kd (=prop vers B)

8 dict begin
	/kd exch def
	/kg exch def
	/By exch def
	/Bx exch def
	/B {Bx By} def
	/Ay exch def
	/Ax exch def
	/A {Ax Ay} def
	gsave
	[A A B vecteur kg mulv addv A A B vecteur kd mulv addv] ligne
	grestore
end
	} def


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%% définitions des couleurs

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


/coul1 {120 255 div 70 255 div 9 255 div setrgbcolor} def



%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%% tracés

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


%% tracé des axes et du point Origine

1 setlinewidth
15 setfontsize
noir
continu
traceaxes
marks
tracerepere



2 setlinewidth
%% tracé du cercle

coul1
continu

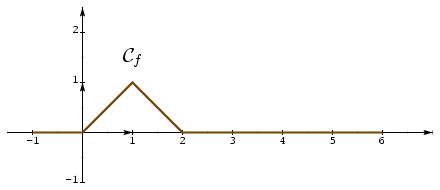

[-1 0 0 0 1 1 2 0 6 0] ligne



%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%% texte

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

setTimesItalic


noir
<latex>
$\mathcal{C}_f$
</latex>
1 1.5 [2 dup] cctexlabel
