Présentation de 215.jps

%% auteur :







%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%% PhS

%%


%% échelle et étendue de l'image

60 setxunit
-3.5 3.5  setxrange
-3 4 setyrange


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%%  DANGER !! Il ne faut pas utiliser de variables

%%  DANGER !! qui commence par les lettres :

%%  DANGER !! xmin, xmax, ymin et ymax...

%%  DANGER !! Utiliser x_min, y_min...

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%




%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%% procédures

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%



%% procedure sphere_parallele

/parallele_de_sphere { %% R (rayon) phi (lattitude deg) alpha (inclinaison deg)

6 dict begin
   /alpha exch def
   /phi exch def
   /R exch def
   /Xdet {
   1 dict begin
       /t exch def
       R phi sin mul t cos mul
   end
   } def
   /Ydet {
   1 dict begin
       /t exch def
       phi cos alpha cos mul phi sin alpha sin mul t sin mul sub R mul
   end
   } def
   90 phi eq
     {/phi phi 1.001 mul def}
   if
   1 alpha tan phi tan div lt
     {/tmax -90 def}
     { alpha tan phi tan div -1 lt
       {/tmax 90 def}
       {/tmax alpha tan phi tan div neg arcsin def}
     ifelse}
   ifelse
   gsave
   tmax dup neg 180 add settrange
   {Xdet} {Ydet} courbeparam
   grestore
end
   } def



%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%% définitions des couleurs

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


/coul1 {120 255 div 70 255 div 9 255 div setrgbcolor} def



%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%% tracés

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


%% tracé des axes et du point Origine

1 setlinewidth
15 setfontsize
noir
continu
traceaxes
marks
tracerepere



rouge
0 0 3 cercle

coul1

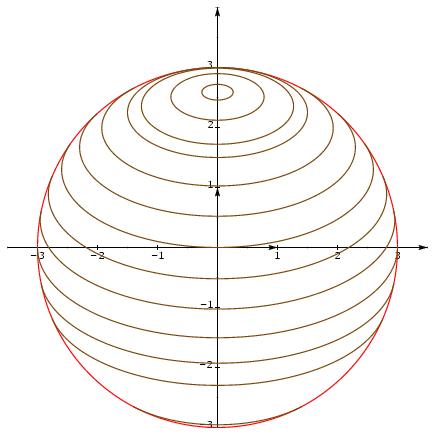

3 5 30 parallele_de_sphere
3 15 30 parallele_de_sphere
3 25 30 parallele_de_sphere

3 30 30 parallele_de_sphere
3 40 30 parallele_de_sphere
3 50 30 parallele_de_sphere
3 60 30 parallele_de_sphere
3 70 30 parallele_de_sphere
3 80 30 parallele_de_sphere
3 90 30 parallele_de_sphere
3 100 30 parallele_de_sphere
3 110 30 parallele_de_sphere
3 140 30 parallele_de_sphere

3 155 30 parallele_de_sphere
3 165 30 parallele_de_sphere
3 175 30 parallele_de_sphere
