Présentation de arbre_03.jps

autocrop
usecolor
20 setxunit
-10 10 setxrange
-20 10 setyrange

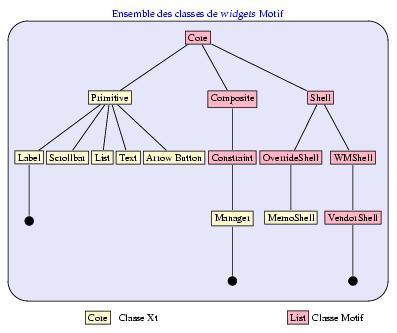

#tex# Ensemble des classes de {\sl widgets\/} Motif
bleu
0 6.2 bctexlabel
noir

3 setdboxit
setTimes

/levelsep 3 def
/nodesep 1 def
setTimes

/NoeudXT {
1 dict begin
   Tb {/fillstyle {LemonChiffon1 fill} def} tnparametres
end
} def

/NoeudMotif {
1 dict begin
   Tb {/fillstyle {pink1 fill} def} tnparametres
end
} def

/Tc* {
1 dict begin
   Tc {/fillstyle {noir fill} def } tnparametres
end
} def

2 dict begin
   /fillstyle {lavender fill} def
   /linearc 1 def
   9.5 6 -9.5 -8 frame*
end

0 5 (Core) NoeudMotif rootnode
[
   (Primitive) NoeudXT
   [
      (Label) NoeudXT [Tc*]
      (Scrollbar) NoeudXT
      (List) NoeudXT
      (Text) NoeudXT
      (Arrow Button) NoeudXT
   ]
   (Composite) NoeudMotif
   [
      (Constraint) NoeudMotif [(Manager) NoeudXT [Tc*]]
   ]
   (Shell) NoeudMotif
   [
      (OverrideShell) NoeudMotif [(MemoShell) NoeudXT]
      (WMShell) NoeudMotif [(VendorShell) NoeudMotif [Tc*]]
   ]
]
tree*

/levelsep 2 def
-5 -9 (Core) NoeudXT rootnode [right (Classe Xt) Tr non_relie] tree
5 -9 (List) NoeudMotif rootnode [right (Classe Motif) Tr non_relie] tree
