espace.mp [ source brut ]
%d'après Urs Oswald http://www.ursoswald.ch/ %prologues:=2; u:=25; % 25 = 25bp = 25 PostScript points = 30/72 in wi:=10; % width in units u he:=9; % height in units u hoehe:=he*u; % height breite:=wi*u; % width transform t, Txy; pair P[]; path p[]; color sommet[], vecteur; % 3D vectors: MetaPost type ``color'' rotX:=0; % angle of rotation around the x axis rotY:=0; % angle of rotation around the y axis rotZ:=-45; % angle of rotation around the z axis vecteur:=(0,0,0);%(1.6, 1, 2.7); % translation (in mathematical units) P0=(3.2, 2.2)*u; % origin in MetaPost coordinates (bp) P1=(-.6, -.4)/1.5; % x axis in mathematical coordinates t:=identity % t: maps mathematical 2D coordinates scaled u % onto MetaPost coordinates (bp) shifted P0; Txy:=identity % Txy: maps 3D coordinates x,y onto reflectedabout((0,0), (1,1)) % MetaPost coordinates yscaled ypart P1 slanted (xpart P1/ypart P1) transformed t; vardef rotaX(expr SpaceVector, winkel) = % rotation of 3D vector pair yz; % ``SpaceVector'' around yz:=(greenpart SpaceVector, bluepart SpaceVector); % the x axis by the yz:=yz rotated winkel; % angle ``winkel'' (redpart SpaceVector, xpart yz, ypart yz) enddef; vardef rotaY(expr SpaceVector, winkel) = % rotation around the y axis pair zx; zx:=(bluepart SpaceVector, redpart SpaceVector); zx:=zx rotated winkel; (ypart zx, greenpart SpaceVector, xpart zx) enddef; vardef rotaZ(expr SpaceVector, winkel) = % rotation around the z axis pair xy; xy:=(redpart SpaceVector, greenpart SpaceVector); xy:=xy rotated winkel; (xpart xy, ypart xy, bluepart SpaceVector) enddef; vardef getPixel(expr SpaceVector) = % returns MetaPost coordinates (bp) % SpaceVector: type ``color'' % of spatial projection of (redpart SpaceVector, greenpart SpaceVector) % 3D point transformed Txy % with coordinates ``SpaceVector'' shifted (0, u*bluepart SpaceVector) enddef; vardef Face(text t) = % returns cyclic path formed of the forsuffixes $=t: z$-- endfor % z points with suffixes in argument t cycle enddef; vardef Arete(text t) = % returns path formed of the k:=0; % z points with suffixes in argument t forsuffixes $=t: k:=k+1; endfor % count number of arguments first i:=1; forsuffixes $=t: % problem: the last z must not be followed by -- if i<k: z$-- else: z$ fi hide(i:=i+1) %hide: to prevent ``i:=i+1'' to be written into the path endfor % no ; after ``)'' (would be written into path) enddef; def lot(expr n) = % draws perpendicular line from point sommet[n] color SpaceVector; % to (x,y) plane SpaceVector:=sommet[n]; draw getPixel(SpaceVector)--getPixel((redpart SpaceVector,greenpart SpaceVector, 0)); draw_point(getPixel(SpaceVector), white, black); draw_point( getPixel((redpart SpaceVector,greenpart SpaceVector, 0)), white, black); enddef; def draw_point(expr P, colInt, colPer) = fill fullcircle scaled 1mm shifted P withcolor colInt; draw fullcircle scaled 1mm shifted P withcolor colPer; enddef; def Lote(text t) = % invokes lot(n) for all the suffixes in forsuffixes $=t: % argument t lot($); endfor enddef; sommet0:=(3, 0, 0); % definition of cube ``sommet'' sommet1:=(3, 3, 0); % (array of type color) sommet2:=(0, 3, 0); % in mathematical 3D coordinates sommet3:=(0, 0, 0); sommet4:=(3, 0, 3); sommet5:=(3, 3, 3); sommet6:=(0, 3, 3); sommet7:=(0, 0, 3);
beginfig(1); rotZ:=50; for i=0 upto 7: % rotation and translation sommet[i]:=rotaX(sommet[i], rotX); % of cube sommet[i]:=rotaY(sommet[i], rotY); sommet[i]:=rotaZ(sommet[i], rotZ); sommet[i]:=sommet[i]+vecteur; endfor for i=0 upto 7: % z100,...,z107: MetaPost coordinates of z[i+100]=getPixel(sommet[i]); % cube after rotation endfor % --- Axes --- drawarrow getPixel((0, 0, 0))--getPixel((6, 0, 0)); label.llft(btex $x$ etex, getPixel((6, 0, 0))+(0, 1mm)); drawarrow getPixel((0, 0, 0))--getPixel((0, 6, 0)); label.rt (btex $y$ etex, getPixel((0, 6, 0))); drawarrow getPixel((0, 0, 0))--getPixel((0, 0, 6)); label.top (btex $z$ etex, getPixel((0, 0, 6))); % --- Cube after rotation --- fill Face(104, 105, 106, 107) withcolor .7red; fill Face(103, 100, 104, 107) withcolor .9red; fill Face(100, 101, 105, 104) withcolor .5red; draw Arete(106, 102, 103) dashed evenly; draw Arete(102, 101) dashed evenly; draw Arete(107, 104, 100, 104, 105); draw Face(101, 105, 106, 107, 103,100); endfig;
beginfig(2); %Pyramide sommet0:=(0, 0, 0); sommet1:=(3, 4, 0); sommet2:=(0, 7, 0); sommet3:=(0, 2, 5); %définition des points for i=0 upto 3: z[i]=getPixel(sommet[i]); endfor % --- Grid --- for i=0 upto 5: draw getPixel((i,0,0))--getPixel((i,5,0)) withcolor .7white; draw getPixel((0,i,0))--getPixel((5,i,0)) withcolor .7white; draw getPixel((0,i,0))--getPixel((0,i,5)) withcolor .7white; draw getPixel((0,0,i))--getPixel((0,5,i)) withcolor .7white; draw getPixel((0,0,i))--getPixel((5,0,i)) withcolor .7white; draw getPixel((i,0,0))--getPixel((i,0,5)) withcolor .7white; endfor % --- End Grid --- % --- Frame --- draw (0, 0)--(breite, 0)--(breite, hoehe)--(0, hoehe)--cycle; % --- Axes --- drawarrow getPixel((0, 0, 0))--getPixel((6, 0, 0)); label.llft(btex $x$ etex, getPixel((6, 0, 0))+(0, 1mm)); drawarrow getPixel((0, 0, 0))--getPixel((0, 6, 0)); label.rt (btex $y$ etex, getPixel((0, 6, 0))); drawarrow getPixel((0, 0, 0))--getPixel((0, 0, 6)); label.top (btex $z$ etex, getPixel((0, 0, 6))); fill Face(0, 1, 3) withcolor .9red; fill Face(1, 2, 3) withcolor .7red; draw Face(0, 1, 2, 3); draw Arete(3, 1); draw 1/2[z0,z3]--1/2[z1,z3]; draw 1/2[z2,z3]--1/2[z1,z3]; draw 1/2[z2,z3]--1/2[z0,z3] dashed evenly; endfig;
beginfig(3); sommet0:=(0, 0, 0); sommet1:=(3, 4, 0); sommet2:=(0, 7, 0); sommet3:=(0,1,2.5); sommet4:=(1.5,3,2.5); sommet5:=(0,4.5,2.5); %sommet3:=(0, 2, 5); %définition des points for i=0 upto 5: z[i]=getPixel(sommet[i]); endfor fill Face(0,1,4,3) withcolor 0.9red; fill Face(1,2,5,4) withcolor 0.7red; fill Face(3,4,5) withcolor 0.5red; draw Arete(2,0) dashed evenly; draw Face(0,1,4,3); draw Face(1,2,5,4); draw Face(3,4,5); endfig;

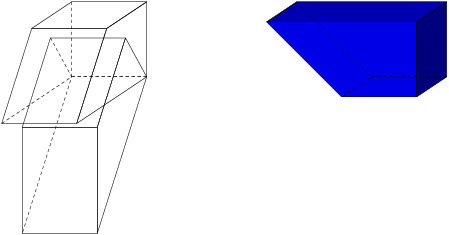

beginfig(4); sommet0:=(0, 0, 0); sommet1:=(3, 0, 0); sommet2:=(3, 7, 0); sommet3:=(0,7,0); sommet4:=(0,4,3); sommet5:=(0,0,3); sommet6:=(3,0,3); sommet7:=(3,4,3); sommet9:=(0, 10, 0); sommet10:=(0, 10, 3); sommet8:=(3,10,0); sommet11:=(3,10,3); %sommet3:=(0, 2, 5); %définition des points for i=0 upto 11: z[i]=getPixel(sommet[i]); endfor picture pgauche,pdroite,prot; pgauche=image( fill Face(1,2,7,6) withcolor 0.9red; fill Face(6,7,4,5) withcolor 0.7red; fill Face(3,4,7,2) withcolor 0.5red; draw Arete(5,0,1) dashed evenly; draw Arete(0,3) dashed evenly; draw Face(1,2,7,6); draw Face(4,5,6,7); draw Face(2,3,4,7); ); pdroite=image( fill Face(2,8,11,7) withcolor 0.9blue; fill Face(4,7,11,10) withcolor 0.7blue; fill Face(8,9,10,11) withcolor 0.5blue; draw Arete(4,3,2) dashed evenly; draw Arete(3,9) dashed evenly; draw Face(2,8,11,7); draw Face(4,7,11,10); draw Face(8,9,10,11); ); %draw pgauche; draw pdroite shifted(u*(2,0)); rotX:=0; rotY:=0; rotZ:=-90; for i=0 upto 7: sommet[i]:=rotaX(sommet[i], rotX); sommet[i]:=rotaY(sommet[i], rotY); sommet[i]:=rotaZ(sommet[i], rotZ); endfor for i=0 upto 7: z[i+100]=getPixel(sommet[i]); endfor draw Face(100,103,104,105); draw Face(104,105,106,107); draw Face(102,103,104,107); draw Arete(106,101,102) dashed evenly; draw Arete(100,101) dashed evenly; rotX:=0; rotY:=angle(z7-z2)-90; rotZ:=0; for i=0 upto 7: sommet[i]:=rotaX(sommet[i], rotX); sommet[i]:=rotaY(sommet[i], rotY); sommet[i]:=rotaZ(sommet[i], rotZ); endfor for i=0 upto 7: z[i+200]=getPixel(sommet[i]); endfor draw Face(200,203,204,205); draw Face(204,205,206,207); draw Face(202,203,204,207); draw Arete(206,201,202) dashed evenly; draw Arete(200,201) dashed evenly; endfig;
beginfig(5); sommet0:=(0,0,0); sommet1:=(6,0,0); sommet2:=(6,6,0); sommet3:=(0,6,0); sommet4:=(0,6,6); sommet5:=(0,0,6); sommet6:=(6,0,6); sommet7:=(6,6,6); sommet8:=1/3[sommet7,sommet6]; sommet9:=1/3[sommet7,sommet4]; sommet10:=1/3[sommet7,sommet2]; sommet11:=1/3[sommet2,sommet7]; sommet12:=1/3[sommet2,sommet1]; sommet13:=1/3[sommet2,sommet3]; sommet14:=1/3[sommet1,sommet0]; sommet15:=1/3[sommet1,sommet6]; sommet16:=1/3[sommet1,sommet2]; sommet17:=1/3[sommet6,sommet7]; sommet18:=1/3[sommet6,sommet1]; sommet19:=1/3[sommet6,sommet5]; sommet20:=1/3[sommet5,sommet6]; sommet21:=1/3[sommet5,sommet4]; sommet22:=1/3[sommet5,sommet0]; sommet23:=1/3[sommet4,sommet5]; sommet24:=1/3[sommet4,sommet7]; sommet25:=1/3[sommet4,sommet3]; sommet26:=1/3[sommet3,sommet4]; sommet27:=1/3[sommet3,sommet2]; sommet28:=1/3[sommet3,sommet0]; sommet29:=1/3[sommet0,sommet3]; sommet30:=1/3[sommet0,sommet1]; sommet31:=1/3[sommet0,sommet5]; for i=0 upto 31: z[i]=getPixel(sommet[i]); endfor fill Face(15,16,12,11,10,8,17,18) withcolor red; fill Face(19,17,8,9,24,23,21,20) withcolor 0.6red; fill Face(11,13,27,26,25,24,9,10) withcolor 0.8red; fill Face(11,12,13) withcolor 0.7green; fill Face(8,9,10) withcolor 0.7green; fill Face(14,15,16) withcolor 0.7green; fill Face(17,18,19) withcolor 0.7green; draw Face(15,16,12,11,10,8,17,18); draw Face(19,17,8,9,24,23,21,20); draw Face(11,13,27,26,25,24,9,10); draw Face(11,12,13); draw Face(8,9,10); draw Face(14,15,16); draw Face(17,18,19); draw Arete(22,31,30,14) dashed evenly; draw Arete(31,29,28) dashed evenly; draw Arete(20,22,21) dashed evenly; draw Arete(23,25) dashed evenly; draw Arete(27,28,26) dashed evenly; draw Arete(29,30) dashed evenly; endfig; color pointducercle[];

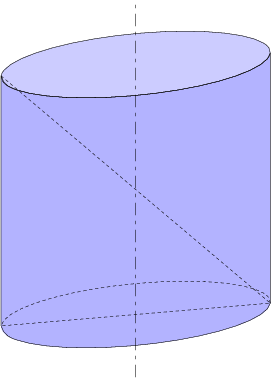

beginfig(6); for i=0 upto 36: pointducercle[i]:=(2+cosd 10i,2+sind 10i,3); endfor; path bas; bas=getPixel(5(pointducercle29)) for i=31 upto 36:..getPixel(5(pointducercle[i])) endfor ..getPixel(5(pointducercle0)) for i=1 upto 11:..getPixel(5(pointducercle[i])) endfor ; path faceavant; faceavant=bas--(getPixel(5(pointducercle11)) shifted(u*(0,10)))--reverse(bas shifted(u*(0,10)))--(getPixel(5(pointducercle29)))--cycle; fill getPixel(5(pointducercle0)) for i=1 upto 36:..getPixel(5(pointducercle[i])) endfor ..cycle withcolor (.8,.8,1); fill (getPixel(5(pointducercle0)) for i=1 upto 36:..getPixel(5(pointducercle[i])) endfor ..cycle) shifted (u*(0,10)) withcolor (.8,.8,1); fill faceavant withcolor (.7,.7,1); draw faceavant; draw getPixel(5(pointducercle11)) for i=12 upto 29:..getPixel(5(pointducercle[i])) endfor dashed evenly; draw (getPixel(5(pointducercle0)) for i=1 upto 36:..getPixel(5(pointducercle[i])) endfor ..cycle) shifted (u*(0,10)); draw getPixel(5(2,2,2.5))--(getPixel(5(2,2,5.5))) dashed dashpattern(on12bp off6bp on3bp off6bp); draw (getPixel(5(pointducercle29)) shifted(u*(0,10)))--getPixel(5(pointducercle11))--getPixel(5(pointducercle29)) dashed evenly; endfig;
beginfig(7); sommet1:=(0,0,0); sommet2:=(5,0,0); sommet3:=(0,5,0); sommet4:=(0,0,5); for i=1 upto 4: z[i]=getPixel(sommet[i]); endfor fill Face(4,2,3) withcolor 0.9red; draw Face(4,2,3); draw Arete(4,1,2) dashed evenly; draw Arete(1,3) dashed evenly; endfig;
beginfig(8); sommet1:=(5,0,0); sommet2:=(5,6,0); sommet3:=(1,6,0); sommet4:=(1,0,0); sommet5:=(2,3,5); sommet6:=(2,3,-5); for i=1 upto 6: z[i]=getPixel(sommet[i]); endfor; fill Face(5,2,1) withcolor 0.9red; fill Face(5,2,3) withcolor 0.7red; fill Face(6,2,3) withcolor 0.7red; fill Face(6,1,2) withcolor 0.5red; draw Face(5,1,2); draw Face(5,2,3); draw Face(6,2,3); draw Face(6,1,2); draw Arete(6,4,3,6) dashed evenly; draw Arete(5,4,1) dashed evenly; endfig;

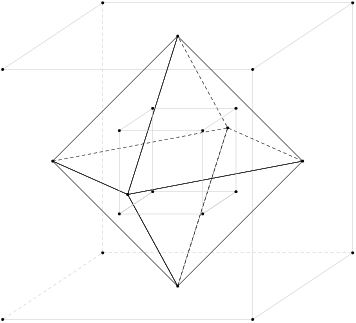

beginfig(9); sommet1:=(10,0,0); sommet2:=(10,10,0); sommet3:=(0,10,0); sommet4:=(0,0,0); sommet5:=(10,0,10); sommet6:=(10,10,10); sommet7:=(0,10,10); sommet8:=(0,0,10); sommet9:=1/2[sommet1,sommet6]; sommet10:=1/2[sommet3,sommet6]; sommet11:=1/2[sommet3,sommet8]; sommet12:=1/2[sommet8,sommet1]; sommet13:=1/2[sommet1,sommet3]; sommet14:=1/2[sommet5,sommet7]; sommet15:=2/3[sommet9,1/2[sommet10,sommet14]]; sommet16:=2/3[sommet10,1/2[sommet11,sommet14]]; sommet17:=2/3[sommet11,1/2[sommet12,sommet14]]; sommet18:=2/3[sommet12,1/2[sommet9,sommet14]]; sommet19:=2/3[sommet9,1/2[sommet10,sommet13]]; sommet20:=2/3[sommet10,1/2[sommet11,sommet13]]; sommet21:=2/3[sommet11,1/2[sommet12,sommet13]]; sommet22:=2/3[sommet12,1/2[sommet9,sommet13]]; for i=1 upto 22: z[i]=getPixel(sommet[i]); endfor; %Grand Cube draw Arete(1,2,6,5) withcolor 0.8white; draw Arete(5,8,7,6) withcolor 0.8white; draw Arete(2,3,7) withcolor 0.8white; draw Arete(8,4,1) dashed evenly withcolor 0.8white; draw Arete(4,3) dashed evenly withcolor 0.8white; %Octaèdre draw Face(9,10,14); draw Arete(10,11,14) dashed evenly; draw Arete(12,11,13) dashed evenly; draw Face(12,9,14); draw Face(9,10,13); draw Arete(11,13) dashed evenly; draw Face(12,9,13); %petit Cube drawoptions(withcolor 0.8white); draw Face(15,16,17,18); draw Face(19,20,21,22); draw Arete(18,22,21,17); draw Arete(15,19,20,16); drawoptions(); for i=1 upto 22: fill fullcircle scaled 1mm shifted z[i]; endfor; endfig;

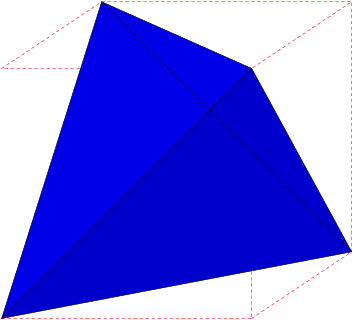

beginfig(10); sommet1:=(10,0,0); sommet2:=(10,10,0); sommet3:=(0,10,0); sommet4:=(0,0,0); sommet5:=(10,0,10); sommet6:=(10,10,10); sommet7:=(0,10,10); sommet8:=(0,0,10); for i:=1 upto 8: z[i]=getPixel(sommet[i]); endfor; %Cube drawoptions(withcolor red dashed evenly); draw Arete(1,2,6,5); draw Arete(5,8,7,6); draw Arete(2,3,7); draw Arete(8,4,1) dashed evenly; draw Arete(4,3) dashed evenly; drawoptions(); %Tetraèdre fill Face(1,6,8) withcolor 0.9blue; fill Face(1,6,3) withcolor 0.8blue; draw Face(1,6,8); draw Face(3,6,1); draw Arete(3,8) dashed evenly; endfig;
beginfig(11);%antiprisme à base pentagonale rotz:=22; sommet1:=rotaZ((1,0,-1),rotz); rotz:=72; sommet2:=rotaZ(sommet1,rotz); sommet3:=rotaZ(sommet2,rotz); sommet4:=rotaZ(sommet3,rotz); sommet5:=rotaZ(sommet4,rotz); sommet6:=2[sommet1,(0,0,0)]; sommet7:=2[sommet2,(0,0,0)]; sommet8:=2[sommet3,(0,0,0)]; sommet9:=2[sommet4,(0,0,0)]; sommet10:=2[sommet5,(0,0,0)]; for i=1 upto 10: z[i]=getPixel(4(sommet[i])); endfor; fill Face(7,5,8) withcolor 0.9red; fill Face(5,8,1) withcolor 0.8red; fill Face(8,1,9) withcolor 0.9red; fill Face(1,9,2) withcolor 0.8red; fill Face(9,2,10) withcolor 0.9red; fill Face(6,7,8,9,10) withcolor 0.7red; draw Face(7,5,8); draw Face(5,8,1); draw Face(8,1,9); draw Face(1,9,2); draw Face(9,2,10); draw Face(6,7,8,9,10); draw Arete(2,3,4,5) dashed evenly; draw Arete(7,4,6,3,10) dashed evenly; endfig;
beginfig(12);%antiprisme à base carrée rotz:=0; sommet1:=rotaZ((1,0,-1),rotz); rotz:=90; sommet2:=rotaZ(sommet1,rotz); sommet3:=rotaZ(sommet2,rotz); sommet4:=rotaZ(sommet3,rotz); sommet5:=rotaZ(2[sommet1,(0,0,0)],45); sommet6:=rotaZ(2[sommet2,(0,0,0)],45); sommet7:=rotaZ(2[sommet3,(0,0,0)],45); sommet8:=rotaZ(2[sommet4,(0,0,0)],45); for i=1 upto 8: z[i]=getPixel(4(sommet[i])); endfor; fill Face(4,6,1) withcolor 0.8red; fill Face(6,1,7) withcolor 0.9red; fill Face(1,7,2) withcolor 0.8red; fill Face(7,2,8) withcolor 0.7red; fill Face(5,6,7,8) withcolor 0.6red; draw Face(4,6,1); draw Face(6,1,7); draw Face(1,7,2); draw Face(7,2,8); draw Face(5,6,7,8); draw Arete(2,3,4,5,3,8) dashed evenly; endfig;

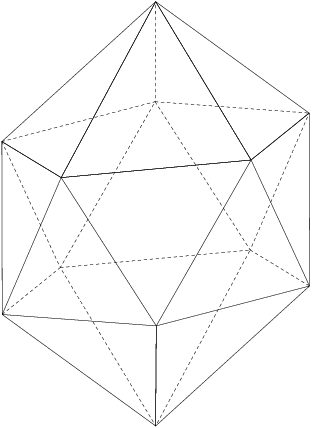

beginfig(13);%antiprisme à base pentagonale+icosaedre rotz:=22; long=sqrt(2); sommet1:=rotaZ((1,0,-1/2),rotz); rotz:=72; sommet2:=rotaZ(sommet1,rotz); sommet3:=rotaZ(sommet2,rotz); sommet4:=rotaZ(sommet3,rotz); sommet5:=rotaZ(sommet4,rotz); sommet6:=2[sommet1,(0,0,0)]; sommet7:=2[sommet2,(0,0,0)]; sommet8:=2[sommet3,(0,0,0)]; sommet9:=2[sommet4,(0,0,0)]; sommet10:=2[sommet5,(0,0,0)]; sommet11:=(0,0,long); sommet12:=(0,0,-long); for i=1 upto 12: z[i]=getPixel(6(sommet[i])); endfor; %fill Face(5,1,12) withcolor 0.8red; %fill Face(1,2,12) withcolor 0.7red; %fill Face(7,8,11) withcolor 0.9red; %fill Face(8,9,11) withcolor 0.8red; %fill Face(9,10,11) withcolor 0.7red; %fill Face(7,5,8) withcolor 0.9red; %fill Face(5,8,1) withcolor 0.8red; %fill Face(8,1,9) withcolor 0.8red; %fill Face(1,9,2) withcolor 0.7red; %fill Face(9,2,10) withcolor 0.7red; %bas draw Face(5,1,12); draw Face(1,2,12); draw Arete(5,4,12) dashed evenly; draw Arete(4,3,12) dashed evenly; draw Arete(3,2) dashed evenly; %haut draw Face(7,8,11); draw Face(8,9,11); draw Face(9,10,11); draw Arete(7,6,11) dashed evenly; draw Arete(6,10) dashed evenly; %milieu draw Face(7,5,8); draw Face(8,1,9); draw Face(9,2,10); draw Arete(7,4,6) dashed evenly; draw Arete(6,3,10) dashed evenly; endfig; end
