Exemples de la distribution (extras)

/* -*-ePiX-*- */
#include "epix.h"
using namespace ePiX;
/*

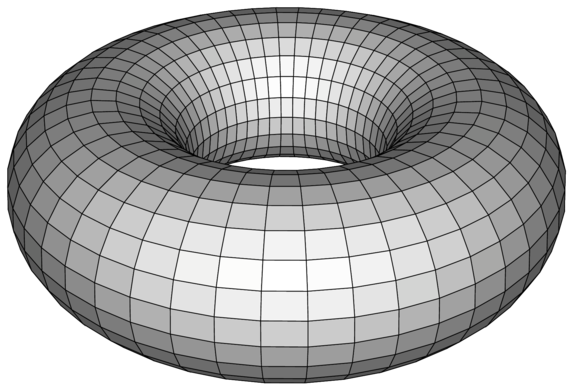

 * Compile with, e.g. elaps -DLINEFIELD decorate.xp
 */

const int N1(24);  // latitudes
const int N2(48);  // longitudes

const double du(1.0/N1);
const double dv(1.0/N2);

const P VIEWPT(6, 3, 4);

const double r_0(0.95); // minor radius
const double R_0(2);    // major radius
double g(double u)
{
  return R_0 + r_0*Cos(u);
}

P F(double u, double v)
{
  return polar(g(u), v) + P(0,0,r_0*Sin(u));
}

namespace ePiX {
  class mesh_quad {
  private:
    P pt1, pt2, pt3, pt4, center;
    double distance;

  public:
    mesh_quad(P f(double u, double v), double u0, double v0)
      : pt1(f(u0,v0)), pt2(f(u0+du,v0)), pt3(f(u0+du,v0+dv)), pt4(f(u0,v0+dv)),
	center(0.25*(pt1 + pt2 + pt3 + pt4)),
	distance(norm(center-camera.get_viewpt())) { }

    double how_far() const { return distance; }

    void draw() const
    {
      P direction(center-camera.get_viewpt());
      P normal((pt2 - pt1)*(pt4 - pt1));
      normal *= 1/norm(normal);

      gray(0.75*(1-pow(normal|(recip(distance)*direction), 2)));

#ifdef NORMAL
      if ((normal|direction) < 0)
	{
	  blue();
	  arrow(center, center-0.5*normal, 0.5);
	  black();
	}
#endif
      fill();
      ePiX::quad(pt1, pt2, pt3, pt4);
      fill(false);

#ifdef NORMAL
      if ((normal|direction) > 0)
	{
	  blue();
	  arrow(center, center-0.5*normal, 0.5);
	  black();
	}
#endif

#ifdef LINEFIELD
      red();
      line(pt1, 0.5*(pt3+pt4));
      line(0.5*(pt1+pt2), pt3);
      black();
#endif
    }
  };

  class by_distance {
  public:
    bool operator() (const mesh_quad& arg1, const mesh_quad& arg2)
    { return arg1.how_far() > arg2.how_far(); }
  };
} // end of namespace

int main() {
  bounding_box(P(-3,-3),P(3,3));
  unitlength("1in");
  picture(4,4);

  begin();

  viewpoint(VIEWPT);
  camera.range(10);

  revolutions();

  std::vector<mesh_quad> mesh;

  for (int i=0; i<N1; ++i)
    for (int j=0; j<N2; ++j)
      mesh.push_back(mesh_quad(F, i*du, j*dv));

  sort(mesh.begin(), mesh.end(), by_distance());

  //  arrow_fill(1);
  for (unsigned int i=0; i<mesh.size(); ++i)
    mesh.at(i).draw();

  end();
}
