Exemples de la distribution (extras)

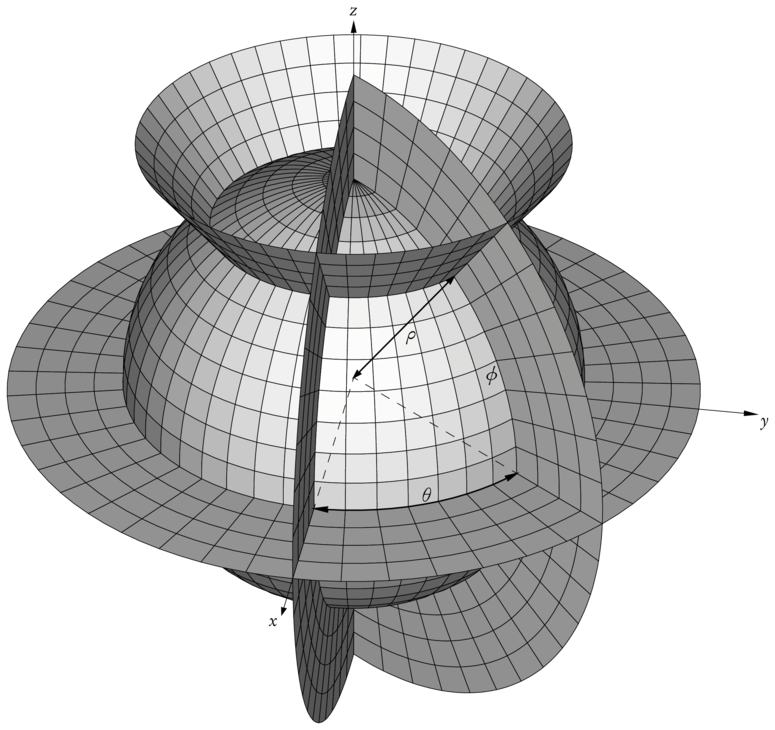

/* -*-ePiX-*- */
#include "epix.h"
using namespace ePiX;

const double MAX(3);

int main()
{
  bounding_box(P(-MAX,-MAX),P(MAX,MAX));
  unitlength("1in");
  picture(6,6);

  begin();

  camera.at(30,5,20);

  revolutions();

  domain R(P(0,0,-0.25), P(3,1,0.25), mesh(12, 48, 24), mesh(12, 96, 120));

  std::list<domain> cuts;

  double Phi(7.0/48), Theta(7.0/48);

  cuts.push_back(R.slice1(2));
  cuts.push_back(R.slice2(0));
  cuts.push_back(R.slice2(Theta));
  cuts.push_back(R.slice3(0));
  cuts.push_back(R.slice3(Phi));

  fill();
  surface(sph, cuts);
  fill(false);

  arrow_fill(1);
  arrow(P(3,0,0), P(3.5,0,0));
  label(P(3.5,0,0), P(-2,-2), "$x$", bl);

  arrow(P(0,3,0), P(0,3.5,0));
  label(P(0,3.5,0), P(2,-2), "$y$", br);

  arrow(P(0,0,3), P(0,0,3.5));
  label(P(0,0,3.5), P(0,4), "$z$", t);

  bold();
  arc_arrow(P(0,0,0), 2, 0.5*Theta, Theta);
  arc_arrow(P(0,0,0), 2, 0.5*Theta, 0);

  aarrow(P(0,0,0), sph(2, Theta, Phi));

  label(sph(2, 0.5*Theta, 0), P(2,2), "$\\theta$", t);
  label(sph(2, Theta, 0.5*Phi), P(-2,0), "$\\phi$", l);
  label(sph(1, Theta, Phi), P(2,-2), "$\\rho$", br);


  dashed();
  plain();
  line(P(0,0,0), P(2,0,0));
  line(P(0,0,0), sph(2, Theta, 0));
  line(P(0,0,0), sph(2, Theta, Phi));

  end();
}
