# Exemples

## Figures et codage

```NewMac("facettesCreuses","
[
if %2=Nil then \$ep:=0.25, \$mode:=0 else ep:=Re(%2)/2, \$mode:=Im(%2) fi,
if mode=0 then
MapBy(
[
\$A1:=Nil, \$A2:=S[0,2],\$A3:=S[1,2], \$F:=Nil,
\$aux:= Map3D(
[
A1:=A2, A2:=A3, A3:=Z,
if A1<>Nil then
\$u:=normalize(A1-A2), \$v:=normalize(A3-A2),
\$ecart:=angle(u,v)/2,
\$L:=ep/sin(ecart),
Insert(F,A2+L*normalize(u+v))
fi
],
\$Z, [S[3,0],S[1,2]]),
\$compt:=0, \$B:=Nil, Insert(\$interieur,[F,jump]),
Map3D(
[
Inc(compt,1), \$A:=B, B:=\$Z,
if A<>Nil then
A,B,F[2*compt-1,2], F[2*compt-3,2],jump
fi,
], Z, S),
B,Copy(S,1,2),F[1,2],F[2*compt-1,2]
],
S, %1, jump),
else
ep:=2*ep,
MapBy(
[
\$A1:=Nil, \$A2:=S[1,2], \$F:=Nil,
\$aux:= Map3D(
[
A1:=A2, A2:=Z,
if A1<>Nil then
\$u:=normalize(A2-A1),
Insert(F,A1+ep*normalize(u))
fi
], \$Z, [S[3,0],S[1,2]]),
\$compt:=0, \$B:=Nil, Insert(\$interieur,[F,jump]),
Map3D(
[
Inc(compt,1), \$A:=B, B:=\$Z,
if A<>Nil then
B,F[2*compt-1,2], F[2*compt-3,2],jump
fi,
], Z, S),
Copy(S,1,2),F[1,2],F[2*compt-1,2]
],
S, %1, jump),
fi,
%3:=interieur
]"), {fin macro -facettesCreuses-}

background(full,darkblue), theta:=85*deg, phi:=39*deg,
P:=Cube([0,0],[5,0]), nb:=15,
Y:=[1,1,0], R:=[1,0,0],
Build3D( for k from 1 to nb do
P:=facettesCreuses(P, 0.3+i, aux),
C:=((nb-k)*R+k*Y)/nb,
[1,Rgb(C[1],C[2],C[3]) , P],
P:=aux, Re(jump)-i
od),
Display3D()
```

```[
{Cet exemple nécessite la chargemeent de PolyedresII.mac,
ainsi que la définition de la macro FacettesCreuses.
Ceci est fait dans le fichier source (.teg) ci-joint}
background(full, lightskyblue),
poly:=Archimede(6, [0,0],[4,0]), {grand rhombicuboctaèdre}
FillColor:=gold, FillStyle:=full,
DrawPolyNC(FacettesCreuses(poly,0.5),1)
]
```

```[
view(-6,6,-6.5,6), Marges(0,0,0,0), size(12,1), background(full,beige),
theta:=30*deg, phi:=99*deg,
C:=Cone(M(0,0,-6),10*vecK,4,25), S:=Sphere(Origin,3,25,25),
I1:=Clip3D(S,C), I2:=Clip3D(C,S), {<- nécessite scene3d.mod à jour}
Build3D(
[1,red,I1],
[1,blue,I2]
),
Display3D(),
Width:=8, FillStyle:=full, FillColor:=Rgb(0.74,0.73,1),
FillOpacity:=0.2,
Color:=blue, Dcone(M(0,0,-6),10*vecK,4,2),
Color:=red, FillColor:=Rgb(1,0.73,0.74), Dsphere(Origin,3,2)
]
```

```[
view(-7,7,-7,7), Marges(0,0,0,0), size(12,1), background(full,beige),
H:=5, R:=4, a:=2, Plan:=[M(a,0,0),vecI],
C1:=cone(Origin, H*vecK,R,45), C2:=cone(Origin, -H*vecK,R,45),
L1:=Intersection(Plan,C1), L2:=Intersection(Plan,C2),
Asymp1:=getdroite( [M(a,0,0),M(0,R,H)] ),
Asymp2:=getdroite( [M(a,0,0),M(0,-R,H)] ),

Build3D([1, Rgb(0.74,1,0.73)+0.9*i,getplan(Plan)],
[1, Rgb(0.73,0.74,1),C1,C2],
[2,darkgreen,12, Asymp1,Asymp2],
[2,0,8,axes3d()],
),
Display3D(),

Color:=red, Width:=8, DrawAretes([L1,L2],0), Color:=black,
Arrows:=1, LineStyle:=dotted, Axes3D(0,0,0)
]
```

```[
Fenetre(-1+i,1-i,5+5*i), LineStyle:=noline,
L:=7, m:=4, sg:=if mod(m,2)=0 then 1 else -1 fi,
P:= (for k from 0 to L do Anp(2*(L-k),L+m)*binom(L,k)*sg,0, sg:=-sg od)/(2^L*fact(L)),
Del(P,L-m+2,0),
K:=sqrt((2*L+1)*fact(L-abs(m))/(4*pi*fact(L+abs(m)))),
NewMac("Plm",["[P:=",P,",T:=P[1],
for k from 2 to Nops(P) do T:=x*T+P[k] od,
T*(1-sqr(x))^(",m,"/2)]"],x),
NewMac("Y",[K,"*Plm(cos(x))*cos(",m,"*y)"],x,y),
S:=GetSurface( [z:=0.75+0.25*Y(v,u),z*exp(i*u)*sin(v),z*cos(v)],
i*2*pi,i*pi,75+75*i),
S1:=SortFacet(S,i),
Map(
if Re(z)=Re(jump) then {facette}
G:=isobar3d(facette),
c:=(norm(G)-0.63)/(0.87-0.63), FillColor:=Rgb(1,1-c,0),
Ligne3D([facette],1), facette:=Nil
else
Insert(facette,z)
fi,
z, S1
)
]
```

Ce fichier est inspiré d'un exemple dû à Philippe Ivaldi avec asymptote.

```[
S:=GetSurface( [u+i*v, (u/2+v)/(2+cos(u/2)*sin(v))], 10*i,10*i,45+45*i),
HideWidth:=8, Dparallelep(Origin,[10,0],[10*i,0],[0,11],0),
S1:=SortFacet(S,i),
Map( if Re(z)=Re(jump) {fin de facette}
then {traiter facette, on découpe aux lignes de niveau: 2, 3, 5, 7.5}
f1:=ClipFacet(facette,[0,2,-vecK]),
f2:=ClipFacet(facette,[0,2,vecK]),
FillColor:=red, Del(f1,Nops(f1),1), Ligne3D([f1,z],1),
f1:=ClipFacet(f2,[0,3,-vecK]), f3:=ClipFacet(f2,[0,3,vecK]),
FillColor:=blue, Del(f1,Nops(f1),1), Ligne3D([f1,z],1),
f1:=ClipFacet(f3,[0,5,-vecK]), f2:=ClipFacet(f3,[0,5,vecK]),
FillColor:=green, Del(f1,Nops(f1),1), Ligne3D([f1,z],1),
f1:=ClipFacet(f2,[0,7.5,-vecK]), f3:=ClipFacet(f2,[0,7.5,vecK]),
FillColor:=yellow, Del(f1,Nops(f1),1), Ligne3D([f1,z],1),
FillColor:=orange, Del(f3,Nops(f3),1), Ligne3D([f3,z],1),
facette:=Nil,
else
Insert(facette,z) {c'est un sommet},
fi, z, S1
),
FillStyle:=none,
Dparallelep(Origin,[10,0],[10*i,0],[0,11],1)
]
```

```[
\$rapport:=4, angle3:=0, courbe:=Nil,
\$angle1:=arcsin(rapport/(rapport+1)), \$angle2:=arcsin(1/(rapport+1)),
\$H:=6, \$R:=H*tan(angle1), \$h:=7,\$r:=h*tan(angle2),

\$C1:=cone(Origin,-H*vecK,R,45),
\$x:=angle1+angle2,
\$u:=[exp(i*angle3)*sin(x),-cos(x)],
\$C2:=cone(Origin, h*u,r,30),
\$A:=h*[sin(angle1),-cos(angle1)]/cos(angle2),
for k from 1 to 72 do
\$angle1':=angle3*rapport,
\$u:=[exp(i*angle3)*sin(x),-cos(x)],
A':=rot3d(A,[Origin,vecK],angle3),
A'':=rot3d(A',[Origin,-u],angle1'),
Insert(courbe,A''),Inc(angle3,pi/36)
od,
L:=lineTube(courbe,0.15,12),
S:=Sphere(Origin,Norm(A),30,30),
Build3D(
[1,Rgb(0.74,1,0.73), C1],
[1, aliceblue+0.6*i,S],
[1,Rgb(0.74,0.73,1), C2],
[1,red-i, L]
),
Display3D()
]```

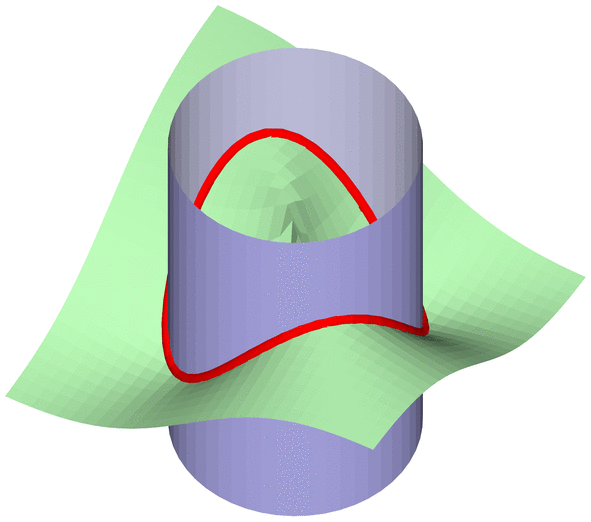

```% Intersection d'un cylindre et d'un conoïde de Plücker.
% Dépend du modèle scene3d.mod.

[
C:=cylindre(M(0,0,-5),10*vecK,3,50),
b:=2,
CP:=GetSurface( M(u,v,2*b*u*v/(sqr(u)+sqr(v))),-5+5*i,-5+5*i,30+30*i),
L:=curveTube([3*exp(i*t),b*sin(2*t)],0.15,-pi,pi,50,15),
Build3D([1, Rgb(0.74,0.73,1), C],
[1, Rgb(0.74,1,0.73), CP],
[1, red, L]
),
Display3D()
]```
